Quick Takeaways:
- Any active fuel leak on a Porsche creates a fire risk that demands immediate attention — this is not a monitor-and-continue situation.
- Common Porsche fuel pump leak points include the sender unit flange gasket, the pump housing O-ring, and external fuel line connections.
- Hard starts, a fuel smell inside or outside the car, and visible fuel residue under the vehicle are the primary symptoms.
- Illinois winters cause fuel system rubber seals to become brittle — spring along the Fox River Valley is a common time for Algonquin Porsche owners to discover developing leaks.
- Francen & Son Foreign Car Repair has served Algonquin and the surrounding McHenry County area since 1989 with the Porsche expertise and safety protocols this work demands.
Algonquin‘s Fox River Valley winters are hard on automotive fuel system components in specific ways. The rubber seals and O-rings that keep fuel contained cycle through extended cold periods — sometimes weeks below freezing in McHenry County — followed by the warm-up cycles when ethanol-blend fuel passes through cold, contracted rubber. Drivers covering Randall Road toward Algonquin Commons, the Route 31 Main Street corridor along the Fox River, or the Route 25 stretch toward Lake in the Hills experience these seasonal extremes in vehicles that park outdoors through Illinois winters. Spring consistently brings Porsche owners to Francen & Son — located off the Fox River Trail corridor that has been a landmark in Algonquin since 1989 — discovering that a seal that held through winter has now decided to make itself known as temperatures warm.

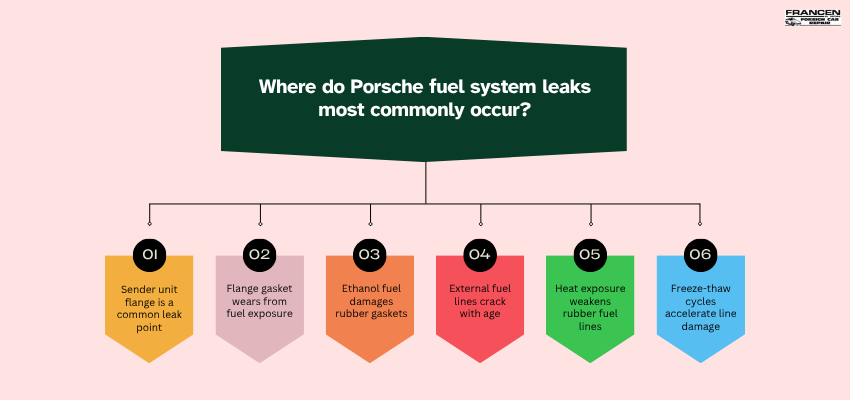

Where do Porsche fuel system leaks most commonly occur?
On most modern Porsche vehicles, the fuel pump and sender unit assembly is located inside the fuel tank. The most common external leak point is the sender unit flange — the large-diameter fitting that seals the pump assembly to the top of the tank. The gasket that seals this flange is exposed to fuel and fuel vapor continuously, and the ethanol content of Illinois winter fuel blends is specifically harder on certain rubber gasket materials.
External fuel lines — particularly the rubber sections near heat sources under the vehicle — crack with age and the McHenry County freeze-thaw cycling. If your Porsche has been garage-stored over winter and you detect any fuel smell when you open the garage door before the car is even started, bring it to Francen & Son before driving it. Contact Francen & Son Foreign Car Repair in Algonquin immediately if you smell fuel from your Porsche.

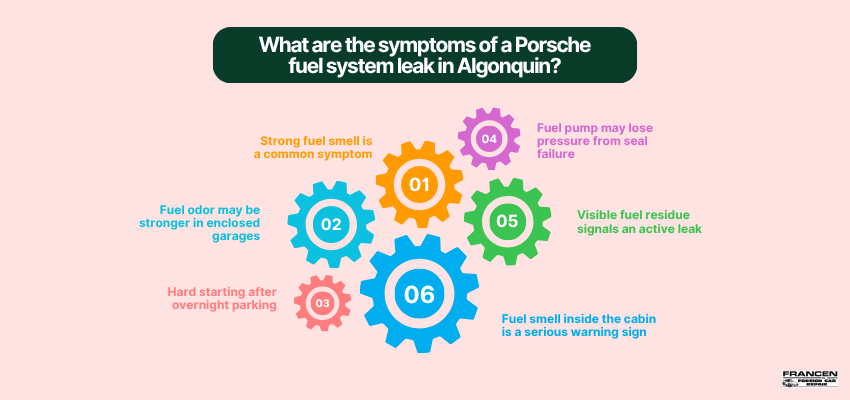

What are the symptoms of a Porsche fuel system leak in Algonquin?
A fuel smell is the most immediate and unmistakable indicator. You may notice it more strongly when the car is parked in an enclosed garage — which makes morning detection common during Algonquin’s cold months when residents park overnight in attached garages off Randall Road or in the Algonquin Commons area neighborhoods.
Hard starting — particularly after the car has sat overnight — can indicate that the fuel pump is losing prime through a leaking check valve or sender flange seal. Visible fuel residue around the fuel filler area or under the rear of the vehicle confirms an active external leak. Any fuel smell inside the passenger cabin warrants immediately stopping use of the vehicle. Schedule Porsche fuel system diagnosis ASAP.
How dangerous is an active Porsche fuel leak, and how should Algonquin drivers respond?
Fuel vapor is heavier than air and accumulates near the ground and around heat sources. A vehicle with an active fuel leak that is parked over hot exhaust components or near a spark source has genuine fire risk. This is not theoretical — it is the reason fuel leaks are treated as immediate safety concerns rather than items to monitor.
If you detect a fuel smell from your Porsche, do not start or continue driving the vehicle. Do not park in an enclosed garage until the leak is repaired. Contact Francen & Son Foreign Car Repair in Algonquin to arrange transport rather than driving the vehicle to the shop. Learn about Francen & Son’s Porsche fuel system repair process in Algonquin IL.
What does Porsche fuel system leak repair involve at Francen & Son?
The repair approach depends on the leak location. External fuel line leaks can be addressed without fuel tank access. Sender unit flange leaks require draining the fuel tank, removing the locking ring that retains the sender assembly, and replacing the flange seal. In most cases, the lock ring and associated hardware are replaced simultaneously.
Francen & Son performs a fuel system pressure test both before and after the repair to confirm the system holds pressure correctly. All work is performed with proper fire safety protocols in place — fuel system work has specific safety requirements that differ from standard mechanical repair.
Frequently Asked Questions
Q: Can I drive my Porsche to Francen & Son if I suspect a fuel leak?
A: If you are smelling fuel, the answer is generally no. Contact Francen & Son at (847) 658-9500 to discuss your situation — in most cases of confirmed or suspected active fuel leaks, transport to the shop is the appropriate approach.
Q: Which Porsche models are most commonly affected by fuel sender flange leaks?
A: The sender flange seal is a wear item on most modern Porsche models including 996, 997, 981, 991, 987, Cayenne, and Panamera. Francen & Son can confirm the typical wear timeline for your specific vehicle.
Q: Does Francen & Son service other European brands besides Porsche?
A: Yes — Francen & Son Foreign Car Repair services BMW, Mercedes, Audi, Volkswagen, Volvo, and other European and Japanese brands alongside Porsche. Contact the shop at (847) 658-9500 to confirm service availability.
Q: How long does Porsche fuel sender seal replacement take at Francen & Son?
A: The repair typically takes two to four hours depending on the specific model and current fuel level in the tank. Francen & Son will provide a timeline estimate when you contact them to arrange service.
